Description
mini digital servo metal gear KingMax CLS2875H HV Mini ServoKingMax CLS2875H Mini HV Digital Metal Gear Servo The KingMax CLS2875H is a compact high voltage digital mini servo designed for applications requiring excellent torque, fast response, and precise control in a lightweight package. Featuring a high quality coreless motor, precision metal gears, dual ball bearings, and a CNC aluminum center case, the CLS2875H delivers impressive performance while weighing only 28 grams. Operating on 5. 0V to 8. 4V, this

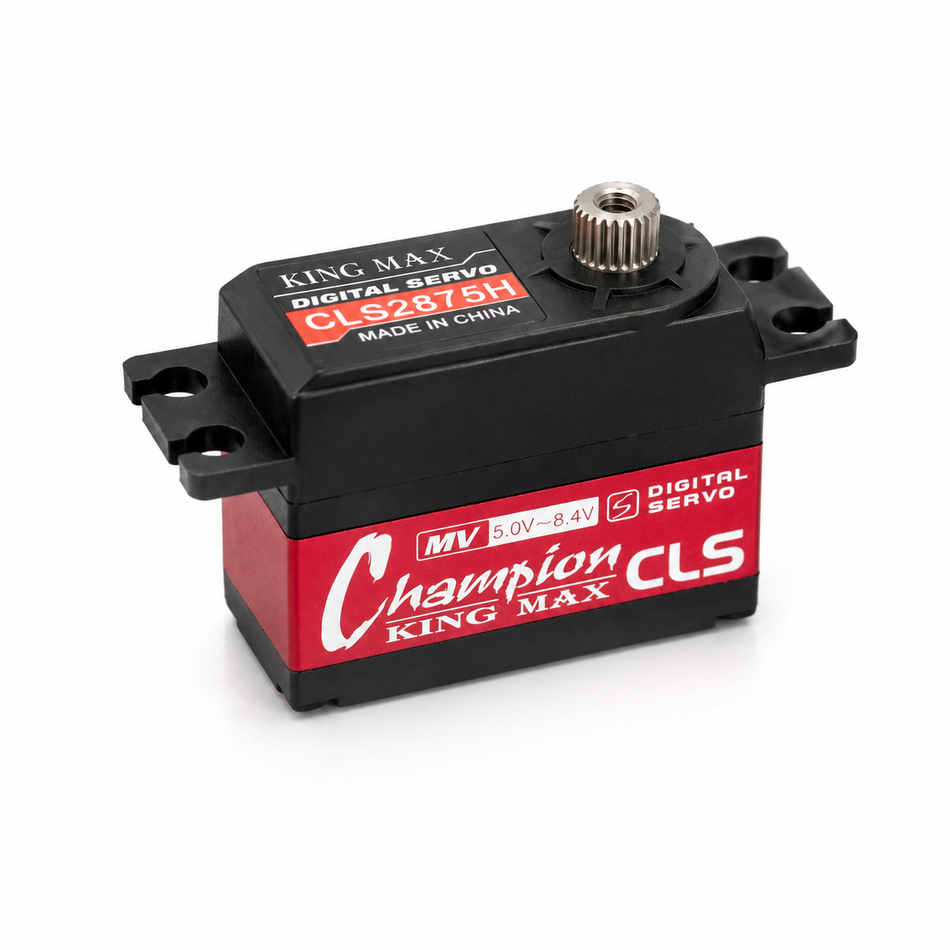

KingMax CLS2875H Mini HV Digital Metal Gear Servo
The KingMax CLS2875H is a compact high-voltage digital mini servo designed for applications requiring excellent torque, fast response, and precise control in a lightweight package. Featuring a high-quality coreless motor, precision metal gears, dual ball bearings, and a CNC aluminum center case, the CLS2875H delivers impressive performance while weighing only 28 grams.
Operating on 5.0V to 8.4V, this programmable digital servo produces up to 11.0kg-cm (152.8 oz-in) of torque and speeds as fast as 0.07 sec/60° at 8.4V. Its compact 15mm-wide design makes it an excellent choice for RC airplanes, EDF jets, sailplanes, helicopters, and other applications where installation space is limited.
Features
- Programmable high-performance digital servo
- Precision metal gears with hard anodized finish
- High-quality coreless motor
- CNC aluminum center case
- Dual ball bearings (2BB)
- Wide voltage operation from 5.0V to 8.4V
- Compact 15mm mini servo design
- Standard 25T spline
- Ideal for 450–500 class helicopter swashplates
Speed & Torque
| Voltage | Speed | Torque |
|---|---|---|
| 5.0V | 0.12 sec/60° | 7.6kg-cm (105.6 oz-in) |
| 6.0V | 0.10 sec/60° | 8.4kg-cm (116.7 oz-in) |
| 7.4V | 0.08 sec/60° | 10.0kg-cm (138.9 oz-in) |
| 8.4V | 0.07 sec/60° | 11.0kg-cm (152.8 oz-in) |
Specifications
| Model | CLS2875H |
| Servo Type | Digital Mini HV Servo |
| Motor | Coreless Motor |
| Gear Train | Precision Metal Gears |
| Spline | Standard 25T |
| Bearings | Dual Ball Bearings (2BB) |
| Operating Voltage | DC 5.0V–8.4V |
| Rated Voltage | DC 7.4V |
| Working Frequency | 1520μs / 330Hz |
| Dead Band | 2μs |
| Working Angle | ±63° @ 800μs–2200μs |
| Waterproof | No |
| Dimensions | 35 × 15 × 29mm (1.38 × 0.59 × 1.14 in) |
| Weight | 28g (0.99 oz) |
| Lead Length | 260mm (10.2 in) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
Recommended Applications
- 450–500 class helicopter swashplates
- Sport aircraft
- EDF jets
- Sailplanes and gliders
- Warbirds
- Aircraft requiring a compact 15mm servo
- Robotics and specialty projects
Includes
- KingMax CLS2875H Servo
- Servo arm hardware set
- Mounting hardware
